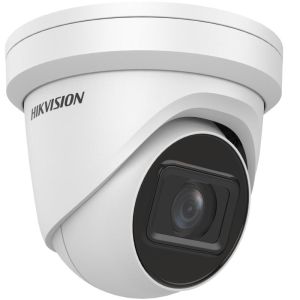

DS-2CD2H66G2T-IZS

6 MP AcuSense Motorized Varifocal Turret Network Camera

• Camera
• Image Sensor1/2.4" Progressive Scan CMOS
• Max. Resolution3200 1800
• Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Day & NightIR cut filter
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0 to 360, tilt: 0 to 75, rotate: 0 to 360

• Lens
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 99 to 35, vertical FOV 53 to 20, diagonal FOV 117 to 41
• Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
• ApertureF1.4
• Lens Mount14
• Iris TypeFixed

• DORI
• DORI

  2.8 to 12 mm:

  Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m

  Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m

• Illuminator
• IR Wavelength850 nm
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• Supplement Light TypeIR

• Video
• Main Stream

  50 Hz: 25 fps (3200 1800, 2688 1520, 1920 1080, 1280 720)

  60 Hz: 30 fps (3200 1800, 2688 1520, 1920 1080, 1280 720)

• Sub-Stream

  50 Hz: 25 fps (1280 720, 640 480, 640 360)

  60 Hz: 30 fps (1280 720, 640 480, 640 360)

• Third Stream

  50 Hz: 10 fps (1920 1080, 1280 720, 640 480, 640 360)

  60 Hz: 10 fps (1920 1080, 1280 720, 640 480, 640 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream and sub-stream
• Target CroppingYes

• Audio
• Audio TypeMono sound
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Wide Dynamic Range (WDR)120 dB
• Privacy Mask4 programmable polygon privacy masks
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR 52 dB

• Interface
• Alarm1 input, 1 output (max. 24 VAC/24 VDC, 1 A)
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K, interface type: non-equilibrium;

  1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 , interface type: non-equilibrium

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset KeyYes

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart EventScene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

• Deep Learning Function
• Face CaptureYes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC 25%, 0.92 A, max. 11.04 W,5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 12.5 W

• Storage Conditions-30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)
• MaterialMetal
• Dimension138.3 mm 126 mm (5.5" 5.0")
• Package Dimension170 mm 170 mm 150 mm (6.7" 6.7" 5.9")
• WeightApprox. 850 g (1.9 lb.)
• Startup and Operating Conditions-30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)
• With Package WeightApprox. 1175 g (2.6 lb.)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
