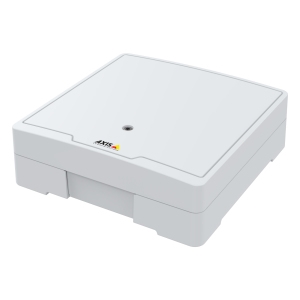

Axis 02653-001 security door controller Housing 2 door(s) RJ-45 / RS-485

Manufacturer: Axis
Category: Home
Sub-Category: Security Door Controllers
SKU: 02653-001
EAN: 7331021081154

Description

This advanced and robust solution includes everything needed to control two doors – all powered by one PoE cable. It offers fast and easy installation on walls. Plus, it’s suitable for plenum spaces. Thanks to intelligence on the edge, it can internally handle all tasks related to door access – even if the network is down. Fully integrated within Axis end-to-end and partner solutions, this scalable product is optimized for both small and large installations. It includes six auxiliary I/Os for easy integration. Plus, it supports flexible authentication using different types of credentials. Furthermore, built-in cybersecurity features prevent unauthorized access and safeguard your system.

Specifications

Technical details
Maximum number of doors2 door(s)
Case designHousing
Built-in UPSNo
InterfaceRJ-45 / RS-485
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd, HTTP/2, TLSd, QoS Layer 3 DiffServ, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Relay inputs2
Number of Wiegand readers supported2
Performance
Number of Wiegand readers supported2
Internal storage capacity2 GB
Storage mediaFlash
Ethernet LANYes
CertificationEN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Ethernet LAN data rates10,100 Mbit/s
Wiegand interfaceYes
Power
DC voltage range10.5 - 28 V
Ports & interfaces
Ethernet LAN (RJ-45) ports1
RS-485 ports1
Operational conditions
Operating temperature (T-T)-40 - 55 °C
Operating relative humidity (H-H)20 - 85%
Storage temperature (T-T)-40 - 55 °C
Weight & dimensions
Width175 mm
Weight1.2 kg
Height60 mm
Depth175 mm
