Crestron RFID-USB RFID reader Black, 13.56 MHz (HF), 12 Mbit/s, 1 x Micro USB, Bluetooth 4.2, 18 g

IMG 1 of 1
Our Price:
$652.10
RRP:
$902.73
You Save:
$250.63
or quickly purchase this product
Backorder
Part Number:
550463
(?) Brand:
Crestron
Manuf No:
RFID-USB
RFIDUSB
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
RFID-USB, RFIDUSB, 8592978544768

Crestron RFID-USB RFID reader Black

Manufacturer: CRESTRON
Category: Home
Sub-Category: RFID Readers
SKU: RFID-USB
EAN: 8592978544768

Description

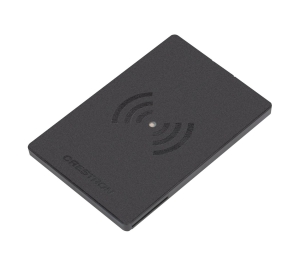

The Crestron® RFID-USB is a sleek RFID card reader that integrates into supported room scheduling applications and custom room control projects via a TSW-70 series or TSS-70 series touch screen. The RFID-USB installs next to the touch screen, allowing users to easily authenticate with or communicate to the touch screen by scanning an RFID card. The RFID-USB also integrates with a Crestron control system for custom room control or access projects. The RFID‑USB supports a range of LF and HF technologies (125 kHz and 13.56 MHz) as well as NFC and Bluetooth® Low Energy (BLE) communications to satisfy numerous RFID use cases.

The RFID-USB provides a small form factor and versatile mounting options for incorporation into new and existing installations. The RFID‑USB attaches securely to glass or drywall surfaces using adhesive pads without requiring any screws. The RFID-USB also is compatible with mullion mount kit installations (TSW‑770/1070‑MSMK series). The RFID‑USB connects directly to the touch screen via USB for power supply and data communication.

Specifications

Technical details
InterfaceUSB
Frequency125 kHz
Working distance8 cm
Product colourBlack
Housing materialPlastic
Bluetooth version4.2
Bluetooth Low Energy (BLE)Yes
Operating frequency13.56 MHz
Integrated antennaYes
Sustainability complianceYes
Compliance certificatesFederal Communications Commission (FCC)
Power
Battery typeNot available
AC adapter output voltage4.3 - 5.5 V
Weight & dimensions
Width46 mm
Depth4 mm
Height66 mm
Weight18 g
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)5 - 95 °C

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
