All stock codes associated to this product
02864-001, 02864001, 7331021085510

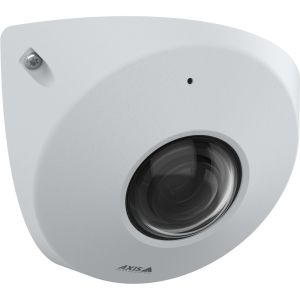

Axis P9117-PV 6MP Indoor Corner Mount Camera with Sterographic lens for full coverage with no blind spots. This ligature-resistant (anti-ligature) corner camera delivers 360° panoramic views whilst compact and vandal-resistant, it’s easy to clean and install.
Built-in microphone and AXIS Audio Analytics
Vandal-resistant (IK10) and IP66-rated dust protection
Built-in cybersecurity with Axis edge vault
Image Sensor | CMOS |
Image sensor size | 1/1.8" |
Lightfinder | Lightfinder |
Wide dynamic range | Forensic WDR |
Min illumination/ light sensitivity (Color) | 0.17 lux |
Min illumination/ light sensitivity (B/W) | 0.04 lux |
Thermal sensitivity (NETD) | – |
Remote focus | – |
Remote zoom | – |
Built-in IR | – |
OptimizedIR | – |
Local storage (memory card slot) | Yes |
Operating temperature | -15 to 50 °C |
Outdoor Ready | – |
Vandal rating | IK10 |
IP rating | IP66 |
Designed for repaint | Yes |
Max video resolution | 2160x2160 |
Max frames per second | 50/60 |
Day and Night functionality | Yes |
Electronic image stabilization | – |
Multiple color palettes | – |
Focal length | 1.1 mm |
Varifocal lens | No |
Aperture | 2.2 |
Horizontal field of view | 176 ° |
Vertical field of view | 176 ° |
Lens mount | – |
Replaceable lens | – |
Detection range: Human (1 5px) | 0.00 m |
Detection range: Vehicle (1 5px) | 0.00 m |
Digital Pan/Tilt | Yes |
Pan range | – |
Tilt range | – |
Guard tour | preset position tour |
Optical zoom | – |
Digital zoom | Yes |
Remote PTRZ | – |
Audio Support | Yes |
Two-way audio | – |
Built-in microphone | Yes |
Audio detection | Yes |
Active tampering | Yes |
Alarm inputs/outputs | – |
Serial connectors | – |
ONVIF Profile | G |
AXIS Camera Application Platform | Yes |
Video motion detection | Yes |
Power over Ethernet | Yes |
PoE Class | 3 |
Wireless | – |
HTTPS encryption | Yes |
IEEE 802 1X | Yes |
