Performance |
---|
Preset points | Yes |
Infrared (IR) cut-off filter | Yes |
Number of languages | 12 |
Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
PTZ modes | Digital PTZ |

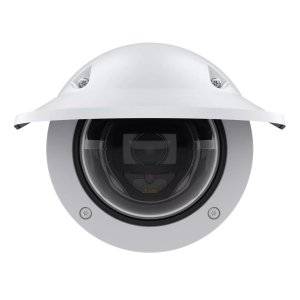

Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Outdoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Certification | EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
Design |
---|
Weatherproof | Yes |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling/wall |
International Protection (IP) code | IP66 |
Housing material | Polycarbonate (PC) |
Camera |
---|
Minimum illumination | 0.13 lx |
Tilt angle range | -10 - 80° |
Pan range | -190 - 190° |
Angle of rotation | 190° |
Camera shutter speed | 1/33500 - 1/5 s |
Camera pan control | Yes |
Camera tilt control | Yes |
Progressive scan | Yes |
Image sensor |
---|
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Number of sensors | 1 |
Lens system |
---|
Number of lenses | 1 |
Zoom capability | Yes |
Normal focusing range | 1 m |
Focal length range | 3 - 8 mm |
Night vision |
---|
Night vision | Yes |
Night vision distance | 40 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video |
---|
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Text caption overlay | Yes |
Privacy masking | Yes |
Flip & mirror | Yes |
Gain control type | Auto |
Smart IR | Yes |
Bit rate control | Variable Bit Rate (VBR) |
Maximum resolution | 2592 x 1944 pixels |
Video compression formats | H.264, H.265, M-JPEG |
Frame rate | 30 fps |
Video streaming | Yes |
Total megapixels | 5 MP |
Video recording | Yes |
Audio |
---|
Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
Audio detection | Yes |
Sample rates | 8 - 48 kHz |
Network |
---|
Bluetooth | No |
Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Streaming method | Multicast |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
Storage |
---|
Card reader integrated | Yes |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Built-in HDD | No |
Flash memory | 8192 MB |
RAM capacity | 2048 MB |
Ports & interfaces |
---|
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security |
---|
Privacy protection | Yes |
Alert notification type | E-mail |
Video motion detection | Yes |
IP address filtering | Yes |
HTTPS encryption | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Pixel counter | Yes |
Digest authentication | Yes |
Power |
---|
Power source type | PoE |
Power consumption (typical) | 6.4 W |
Power consumption (max) | 12.1 W |
Certificates |
---|
Certification | EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
Operational conditions |
---|
Operating temperature (T-T) | -40 - 50 °C |
Storage temperature (T-T) | -40 - 65 °C |
Operating relative humidity (H-H) | 10 - 100% |
Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions |
---|
Width | 149 mm |
Height | 107 mm |
Weight | 900 g |
Sustainability |
---|
Compliance certificates | REACH, RoHS |
Packaging content |
---|
Number of cameras | 1 |
Manual | Yes |
Drilling template included | Yes |
Technical details |
---|
Compliance certificates | REACH, RoHS |
Other features |
---|
Video compression formats | H.264, H.265, M-JPEG |
