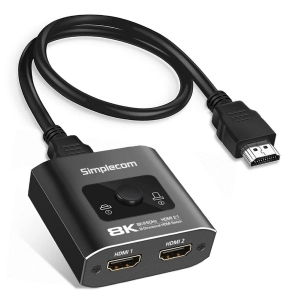

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K
Features
Bi-Directional HDMI 2.1 switch for toggling between 2 HDMI sources or displays
Quickly switch video sources or displays without having to swap cables
Durable aluminium alloy casing, also efficiently dissipate heat
Portable and compact size, easy to install
HDMI 2.1 compliant, support bandwidth up to 48Gbps
Support HDMI video resolution up to 8K@60hz
HDCP 2.3 compliant, wide compatibility with most HDMI source devices
Powered by HDMI source device, no external power required
Specifications
Model: CM302v2
HDMI Version: HDMI 2.1
Video Resolution Support: up to 1080@240Hz, 4K@120Hz, 8K@60Hz
Audio Format Support: DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1
HDR Format Support: HDR10
HDCP Version Support: HDCP 2.3
Max Bandwidth: 48Gbps
Max cable distance: Input<2M, Output<2M
Max Operation Current: 15mA
Power Input: USB DC 5V (Backup power only)
Operating Temperature: (-15 to +55 °C)
Dimension (L x W x H): 53x52x21mm
Weight: 45g
Package Contents
1 x Bi-Directional HDMI Switch
1 x HDMI cable
1 x User Manual
Important Notes:
The length of the HDMI cable connected to both ends of the switch should not exceed 2 meters.
This is a manual HDMI switch and does not support automatic switching.
Powered by HDMI source device, with USB-C port for backup power if no enough power from HDMI.
Two screens cannot display simultaneously under 1 Input 2 Outputs mode.
