All stock codes associated to this product
R-FC120-BKAMN1-G-1, CFD-FC120, CFDFC120, RFC120BKAMN1G1, 6933412710554
| Performance |
|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | Fan |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Fan diameter | 12 cm |
| Noise level (high speed) | 28 dB |
| Maximum airflow | 61.91 cfm |
| Maximum air pressure | 1.83 mmH2O |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Hydro bearing |
| Design |
|---|
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Power |
|---|
| LED voltage | 5 V |
| Fan power consumption | 1.56 W |
| Fan voltage | 12 V |
| Fan current | 0.13 A |
| LED power consumption (fan) | 1.05 W |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan weight | 164 g |
| Technical details |
|---|
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Packaging data |
|---|
| Package type | Box |
| Packaging content |
|---|
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Mounting kit | Yes |
| Other features |
|---|
| LED voltage | 5 V |

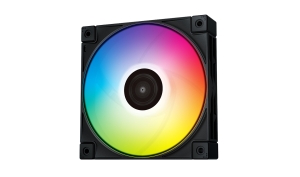

PERFORMANCE RGB PWM FANThe DeepCool FC120 performance RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both RGB and power functions that interconnects between fans and reduces cable clutter.
RGB POWER INTERCONNECTEach FC120 fan features a single cable that transmits both power and RGB data signals that can be daisy-chained in a series of fans to reduce cable clutter. The fan interconnect system removes the need for a hub and makes it easy to synchronize control of PWM and RGB for up to 4 fans.
LIGHTING LUMINOSITYIndividually addressable RGB LEDs surround the center hub and illuminate each translucent fan blade for a classic lighting effect with high luminosity. The FC120 also features a default onboard lighting effect without needing software or a dedicated controller for fast and easy setup.For full system RGB harmony, easily coordinate with other components through supported motherboard RGB software control.
PERFORMANCE EXCELLENCEDesigned with precision, the FC120 features enhanced static pressure and concentrated airflow for outstanding cooling performance. The narrow frame bezel provides an increased area for the fan blades and delivers higher efficiency.
DETAILS MAKE THE DIFFERENCEBuilt with high-quality polybutylene terephthalate (PBT) for increased durability and wear resistance, the fan blades maintain high tensile strength and stiffness to minimize unwanted vibrations.
