ATEN CS64UZ-AT 4-Port USB VGA/Audio Cable KVM Switch - (1.8m)

Overview

CS64U 4-Port USB KVM Switch has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console.

Features

• One USB console controls four USB computers
• Compact design, built-in 1.8 m cables
• Hotkey selection for OS and keyboard language
• Computer Selection via hotkey
• Multiplatform support - Windows, Linux, Mac, Sun
• Video DynaSyncâ„¢ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
• Supports multifunction and wireless keyboards and mice NEW!
• All-in-one design
• With speaker support
• Superior video quality up to 2048 x 1536; DDC2B
• Auto Scan function to monitor computer operation
• Non-powered
• Sun/Mac keyboard support and emulation*
• Firmware upgradable NEW!

  * 1. PC keyboard combinations emulate Sun/Mac keyboards
  2. Sun/Mac keyboards only work with their own computers

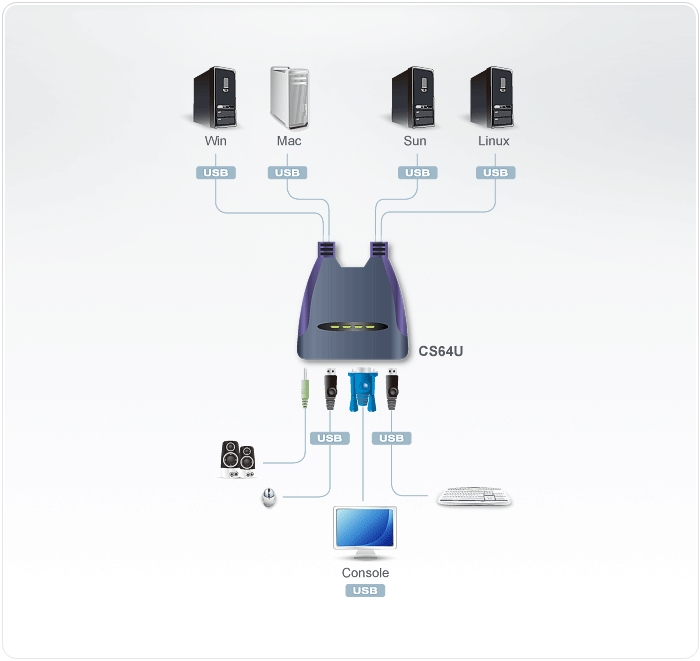

  Diagram



  Specifications

  ?>

  Computer Connections	4
  Port Selection	Hotkey
  Connectors
  Console Ports	2 x USB Type A Female (White)
  	1 x HDB-15 Female(Blue)
  	1 x Mini Stereo Jack Female (Green)
  KVM Ports	4 x USB Type A Male(Black)
  	4 x HDB-15 Male(Blue)
  	4 x Mini Stereo Plug Male (Green)
  LEDs
  Selected	4 (Green)
  Cable Length
  Computer	1.8m
  Emulation
  Keyboard / Mouse	USB
  Video	2048 x 1536, DDC2B
  Scan Interval	1-99 seconds
  Environmental
  Operating Temperature	0 50C
  Storage Temperature	-20 60C
  Humidity	0 80% RH, Non-condensing
  Physical Properties
  Housing	Plastic
  Weight	0.73 kg ( 1.61 lb )
  Dimensions (L x W x H)	9.41 x 9.72 x 2.60 cm
  	(3.7 x 3.83 x 1.02 in.)

   Package Contents

  • 1x 4-Port USB KVM Switch with Attached Cables
  • 1x User Instructions
