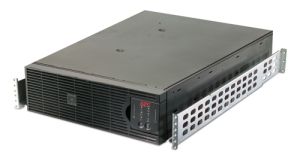

APC Smart-UPS RT 2200VA 230V - Marine
SURTD2200XLIM
APC Marine,1540 Watts /2200 VA,Input 230V /Output 230V, Interface Port RJ-45 Serial, Smart-Slot, Extended runtime model, Rack Height 3 U
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Smart UPS signalling RS-232 cable, User Manual
Product Overview
SURTD2200XLIM Features
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.
Sine wave output
Eliminates humming and heat generated when powering tubelights and fans.
Intelligent Battery Charging
Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Overload protection
Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
Remote UPS management
Enable management of your UPS by connecting it directly to the network.
Excellent footprint
Small UPS footprint provides maximum usage of valuable electrical room floorspace
Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency
Intuitive monitoring
Step by step navigation and menu screens for critical system information and data. Information is easy to access and presented in a very intuitive way.
Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
High online efficiency
Reduces utlility costs, generates less heat.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Global safety approvals
UL60950, CSA60950, IEC60950, EN60950 safety approvals. Meets IEC 61000-4-5 Immunity To Surge, and GR-1089-CORE, Section 4, Lightning and AC Power Faults standards.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Network manageable
Provides remote power management of the UPS over the network.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Programmable frequency
Ensures compatibility with different input frequencies.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Serial connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Marine Features & Benefits
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Serial connectivity
Provides management of the UPS via a serial port.
SmartSlot
Customize UPS capabilities with management cards.
Easy to install
Innovative design allows for fast, easy installation by almost anybody.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Technical support
Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Technical Specifications
Output Power Capacity
1540Watts /2200 VA
Max Configurable Power
1540Watts /2200 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Topology
Double Conversion Online
Output Connections
| (8) IEC 320 C13 |
 |
| (2) IEC 320 C19 |
 |
| (2) IEC Jumpers |
|
Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
| British BS1363A |
|
| IEC-320 C20 |
|
| Schuko CEE 7/EU1-16P |
|
Input voltage range for main operations
180 - 280V
Input voltage adjustable range for mains operation
100 - 280V
Other Input Voltages
220, 240
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.50hour(s)
Replacement Battery
RBC44
Extended Run Options
APC Smart-UPS RT 2200VA 230V - Marine
| Curve |
Part Number(s) |
| A |
SURTD2200XLIM |
| B |
SURTD2200XLIM
+ (1)SURT192XLBP |
| C |
SURTD2200XLIM
+ (2)SURT192XLBP |
| D |
SURTD2200XLIM
+ (3)SURT192XLBP |
| E |
SURTD2200XLIM
+ (4)SURT192XLBP |
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
View Enlarged Graph
View Runtime Chart
| Load |
Efficiency |
| 25% |
87.6% |
| 50% |
91.2% |
| 75% |
92.0% |
| 100% |
92.0% |
Hover over the line on the graph above to view the efficiency at any desired load
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)
RJ-45 Serial, Smart-Slot
Available SmartSlot Interface Quantity
1
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering
Surge energy rating
555JJoules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Operating Environment
0 - 55C
Operating Relative Humidity
0 - 95% no%
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45C
Storage Relative Humidity
0 - 95% no%
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
55.00dBA
Online Thermal Dissipation
609.00BTU/hr
Regulatory Approvals
CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, KCC
Standard Warranty
2 years repair or replace, optional extended warranties available, optional on-site services available
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
