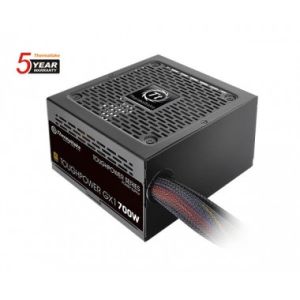

Thermaltake PS-TPD-0700NNFAGA-1 Toughpower GX1 700W
Power Supply
Overview
Thermaltake Toughpower GX1 700W
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 comes with
capacities ranging from 500W to 700W, and the application of 120mm Fluid Dynamic
Bearing Fan, <3% tight voltage regulation, Japanese 105C/221F main capacitors
and premium components. Its near silent operation, trouble free installation and
reliable performance are making itself one of the best values for basic system
upgrades.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 saves energy through its high energy efficiency up to 90% and
is certified to 80 PLUS Gold. The series has been optimized to work with all
generations of Intels processors to achieve maximum energy saving.
Ultra Quiet 120mm Fluid Dynamic Bearing Fan
Featuring an 120mm Fluid Dynamic Bearing Fan to kept friction at really low
levels even after prolonged usage while guaranteeing superior cooling
performance and silent operation.
Low Ripple Noise
The maximum ripple/noise is lower than 60mV on the +12V rail, and lower than
40mV on the +5V &+3.3V rails to ensure an excellent power supply stability.
Low ripple noise will keep your performance-critical components, such as
high-end graphics cards, to operate reliably for longer.
? 3% Strict Voltage Regulation
The voltage regulation of the PSU is set to no more than 3% for major rails
to meet the highest performance. The strict voltage regulation is better than
Intels standard 5% for major rails and 10% for -12V.
Sophisticatedly Designed Exterior Shroud
Sophisticatedly designed exterior shroud stimulates the aesthetic of your
power supply while protecting the inner components from a direct contact.
Multiple Connectors
Comes with multiple connectors that power the system at an advantageous
voltage and make cable installation an easy task.
High Quality Japanese 105C/221F Main Capacitor
Comes with high quality 105 C (221 F) Japanese main capacitor to greatly
improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable
supply to other PC components.
Specifications
|
Model |
SP-700AH2NCG |
|
Type |
ATX
12V v2.4 and EPS v2.92 |
|
Max.
Output Capacity |
700W |
|
Peak
Output Capacity |
840W |
|
Color |
Black |
|
Dimension
W / H / D |
150mm(W)
x 86mm(H) x 140mm(D) |
|
PFC
Power Factor Correction |
Active
PFC |
|
Power
Good Signal |
100-500
msec |
|
Hold
Up Time |
>
12msec at 80% of full load |
|
Input
current |
10A
max. |
|
Input
Frequency Range |
47Hz
- 63Hz |
|
Input
Voltage |
100V
– 240V~ |
|
Operating
Temperature |
0°C
to + 40°C |
|
Operating
Humidity |
20%
to 90%, non-condensing |
|
Storage
Temperature |
-20°C
to + 70°C |
|
Storage
Humidity |
5%
to 95%, non-condensing |
|
Cooling
System |
12cm
fluid dynamic bearing fan |
|
Efficiency |
Meet
80 PLUS®Gold at 115Vac input. |
|
MTBF |
100,000
hrs minimum |
|
Safety
Approval |
CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark |
|
PCI-E
6+2pin |
4 |
