Asrock B550M Pro4 Motherboard
Overview
- Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop
Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for
WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- AMD CrossFireX
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 &
SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4
Rear)
- Realtek Gigabit LAN
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers,
via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most
engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from
which predominant sounds are coming. Each sound is properly positioned in 360 on
a radar for a full immersion during the game.
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU.
Plus, it offers unmatched overclocking capabilities and enhanced performance
with the lowest temperature for advanced gamers as well.
Premium 50A Power Choke
Compared to traditional chokes, ASRocks premium 50A power chokes effectively
make the saturation current up to three times better, thus providing enhanced
and improved Vcore voltage to the motherboard.

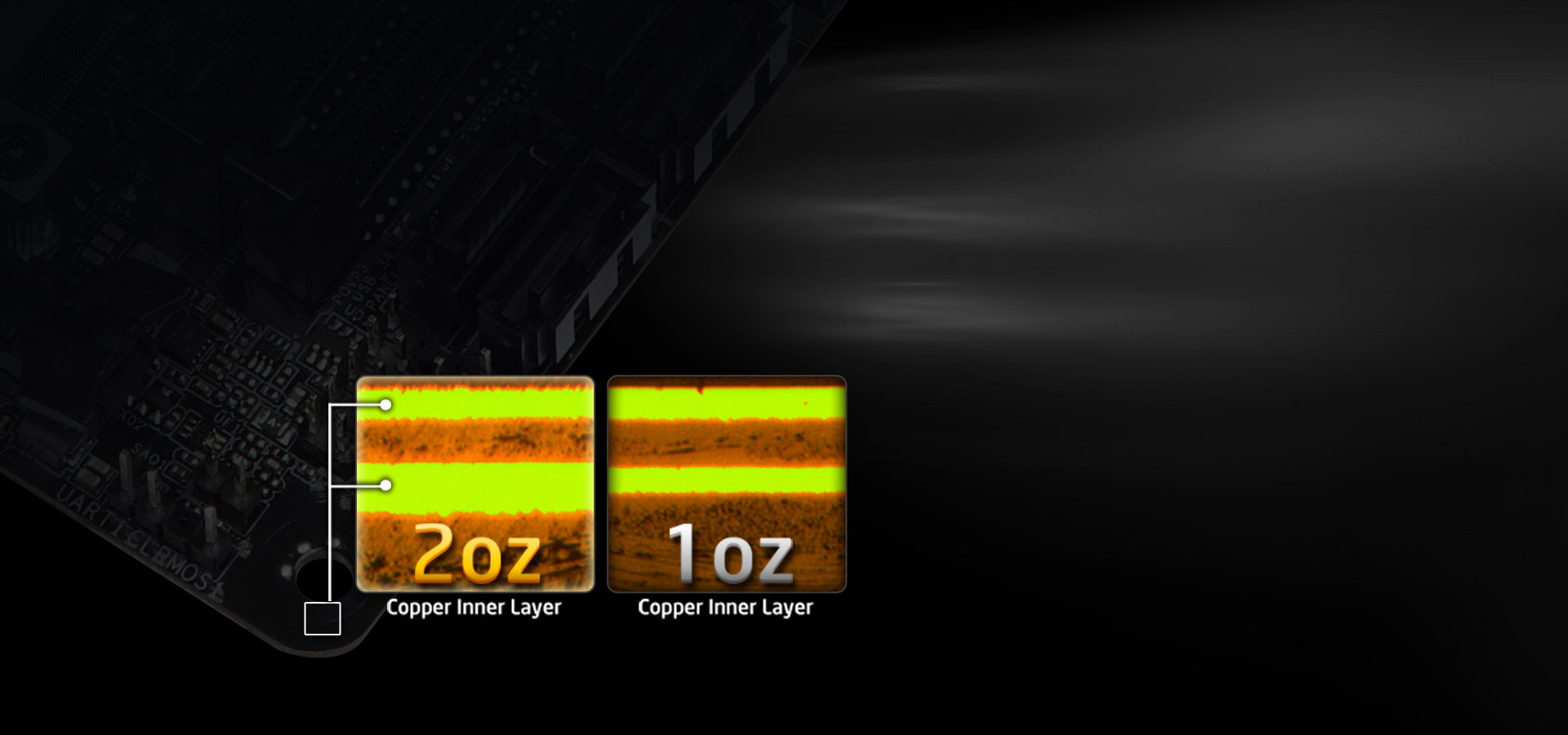

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power
shapes! Delivering lower temperature and higher energy efficiency for
overclocking, it's able to support the latest DDR4 memory modules with most
extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header
that allow motherboard to be connected to compatible LED devices such as strip,
CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices
across the Polychrome RGB Sync-certified accessories to create their own unique
lighting effects.
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill
the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2
socket is capable of running PCIe Gen3 x2 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock
provides a completed M.2 armor solution that makes SSDs to run in a certain low
temperature.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics
memory and limits system performance. With AMD Smart Access Memory, the data
channel gets expanded to harness the full potential of GPU memory, removes the
bottleneck and increase performance.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0
standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports
built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to
deliver up to 10 Gbps data transfer rates.
USB 3.2 Gen2 doubles the data transfer rate
USB 3.2 Gen2 Type-C doubles the charge speed!
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless
connections by M.2 (Key E) slot.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation
every time you start up the system. Post Status Checker is an fast and easy way
to identify the source of the problem.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your
hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology
combines these two types of storage into a single drive and automatically moves
the data you access the most to the SSD, so you get the best of both worlds.
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from
the MOSFET and chipset so that your whole system may perform more stable.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid
quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB
layers to protect the motherboard against electrical shorts caused by
humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB
delivers lower temperature and higher energy efficiency for
overclocking.
Full Spike Protection
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub +
DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power
surges, the excessive current may cause your system to malfunction immediately.
ASRock Full Spike Protection includes various technologies to prevent your
motherboards components from being damaged by these unexpected voltage
spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We
provide various apps and support software for users to download. You can also
easily optimize your system and keep your motherboard up to date with ASRock
Live Update & APP Shop.
Specifications
|
Unique
Feature |
ASRock
USB 3.2 Gen2 |
|
-
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) |
|
-
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) |
|
ASRock
Super Alloy |
|
-
XXL Aluminum Alloy Heatsink |
|
-
Premium 50A Power Choke |
|
-
Sapphire Black PCB |
|
-
High Density Glass Fabric PCB |
|
-
2oz Copper PCB |
|
ASRock
Steel Slot Gen4 |
|
ASRock
Full Coverage M.2 Heatsink |
|
ASRock
Hyper M.2 (PCIe Gen4x4) |
|
ASRock
POST Status Checker (PSC) |
|
ASRock
Full Spike Protection (for all USB, Audio, LAN
Ports) |
|
ASRock
Live Update & APP Shop |
|
CPU |
-
Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop
Processors* |
|
-
Digi Power design |
|
-
8 Power Phase design |
|
*Not
compatible with AMD Ryzen 5 3400G and Ryzen 3
3200G. |
|
Chipset |
-
AMD B550 |
|
Memory |
-
Dual Channel DDR4 Memory Technology |
|
-
4 x DDR4 DIMM Slots |
|
-
AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) /
4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC)
/ 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 /
2133 ECC & non-ECC, un-buffered memory* |
|
-
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) /
4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC)
/ 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) /
3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered
memory* |
|
-
Max. capacity of system memory: 128GB** |
|
-
Supports Extreme Memory Profile (XMP) memory
modules |
|
-
15 Gold Contact in DIMM Slots* |
|
BIOS |
-
256Mb AMI UEFI Legal BIOS with GUI support |
|
-
Supports "Plug and Play" |
|
-
ACPI 5.1 compliance wake up events |
|
-
Supports jumperfree |
|
-
SMBIOS 2.3 support |
|
-
CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP
Voltage Multi-adjustment |
|
Graphics |
-
Integrated AMD Radeon Vega Series Graphics in Ryzen Series
APU* |
|
-
DirectX 12, Pixel Shader 5.0 |
|
-
Shared memory default 2GB. Max Shared memory supports up to
16GB.** |
|
-
Three graphics output options: D-Sub, HDMI and DisplayPort
1.4 |
|
-
Supports Triple Monitor |
|
-
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @
60Hz |
|
-
Supports DisplayPort 1.4 with max. resolution up to 5K
(5120x2880)@120Hz |
|
-
Supports D-Sub with max. resolution up to 1920x1200 @
60Hz |
|
-
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate
Audio) with HDMI 2.1 Port (Compliant HDMI monitor is
required) |
|
-
Supports HDR (High Dynamic Range) with HDMI
2.1 |
|
-
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4
Ports |
|
-
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4
Ports |
|
-
Supports Microsoft PlayReady |
|
Audio |
-
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio
Codec) |
|
-
Premium Blu-ray Audio support |
|
-
Supports Surge Protection |
|
-
PCB Isolate Shielding |
|
-
Individual PCB Layers for R/L Audio Channel |
|
-
Nahimic Audio |
|
LAN |
-
PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
|
-
Realtek RTL8111H |
|
-
Supports Wake-On-LAN |
|
-
Supports Lightning/ESD Protection |
|
-
Supports Energy Efficient Ethernet 802.3az |
|
-
Supports PXE |
|
Slots |
AMD
Ryzen series CPUs (Matisse) |
|
-
2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4
mode)* |
|
AMD
Ryzen series APUs (Renoir) |
|
-
2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4
mode)* |
|
-
1 x PCI Express 3.0 x1 Slot |
|
-
Supports AMD Quad CrossFireX and CrossFireX |
|
-
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT
module |
|
Storage |
-
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10),
NCQ, AHCI and Hot Plug* |
|
-
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express
module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with
Renoir)** |
|
-
1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x2 (16
Gb/s)** |
|
Connector |
-
1 x COM Port Header |
|
-
1 x SPI TPM Header |
|
-
1 x Power LED and Speaker Header |
|
-
2 x RGB LED Headers* |
|
-
2 x Addressable LED Headers** |
|
-
1 x CPU Fan Connector (4-pin)*** |
|
-
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed
Control)**** |
|
-
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed
Control)***** |
|
-
1 x 24 pin ATX Power Connector |
|
-
1 x 8 pin 12V Power Connector |
|
-
1 x Front Panel Audio Connector |
|
-
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
Protection) |
|
-
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD
Protection) |
|
*Support
in total up to 12V/3A, 36W LED Strip |
|
**Support
in total up to 5V/3A, 15W LED Strip |
|
***The
CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan
power. |
|
****The
CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan
power. |
|
*****The
Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W)
fan power. |
|
CPU_FAN2/WP,
CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if
3-pin or 4-pin fan is in use. |
|
Rear
Panel I/O |
-
Antenna Bracket |
|
-
1 x PS/2 Mouse/Keyboard Port |
|
-
1 x D-Sub Port |
|
-
1 x HDMI Port |
|
-
1 x DisplayPort 1.4 |
|
-
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD
Protection) |
|
-
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD
Protection) |
|
-
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD
Protection) |
|
-
2 x USB 2.0 Ports (Supports ESD Protection) |
|
-
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) |
|
-
HD Audio Jacks: Line in / Front Speaker /
Microphone |
|
Software
and UEFI |
Software |
|
-
ASRock Motherboard Utility (A-Tuning) |
|
-
ASRock XFast LAN |
|
UEFI |
-
ASRock Full HD UEFI |
|
-
ASRock Instant Flash |
|
*These
utilities can be downloaded from ASRock Live Update & APP
Shop. |
|
Support
CD |
-
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Browser and Toolbar |
|
Accessories |
-
Quick Installation Guide, Support CD, I/O
Shield |
|
-
2 x SATA Data Cables |
|
-
2 x Screws for M.2 Sockets |
|
Hardware
Monitor |
-
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
-
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU,
CPU/Water Pump, Chassis/Water Pump Fans |
|
-
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
-
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM,
VPPM, 1.05V_PROM_S5, +1.8V, VDDP |
|
Form
Factor |
-
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4
cm |
|
-
Solid Capacitor design |
|
-
2oz Copper PCB |
|
OS |
-
Microsoft Windows 10
64-bit |
|
Certifications |
-
FCC, CE |
|
-
ErP/EuP ready (ErP/EuP ready power supply is
required) |
