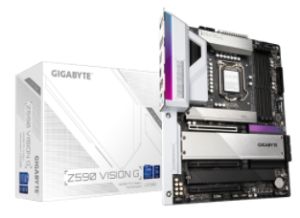

Gigabyte Z590 VISION G Intel ATX Motherboard - 4x DDR4, 3x PCI-E x16, 4x M.2, 6x SATA, 2x USB C, 6x USB 3.2, 2x USB 2.0

Our Price:

$267.00

RRP:

~~$471.90~~

You Save:

$204.90

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Order In from SupplierShips from our warehouse in 1-3 business days

Part Number:

494374

(?) Brand:

Gigabyte Web Site

Manuf No:

GA-Z590-VISION-G
GAZ590VISIONG

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

GAZ590VISIONG, GA-Z590-VISION-G, 3650630000000

Intel Z590 Creators Motherboard with unique VisionLINK I/O design, Effective thermal solution, Intel 2.5GbE LAN, PCIe 4.0 x16 slot, Quad NVMe PCIe x4 M.2 Connectors, Front USB 3.2 Gen 2x2 Type-C Header

Powerful performance support 11th and 10th Gen Intel Core series processors

Dual Channel Non-ECC Unbuffered DDR4 memory, 4 DIMMs

Go further without more cables by VisionLINK I/O design

High-bandwidth and low-latency network support by Intel 2.5GbE LAN

Comprehensive connectivity by front and rear USB3.2 Gen 2x2 Type-C connectors

PCIe 4.0 hardware design and maximum memory capacity up to 128GB for empowering real-time workload

4 Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards

Effective cooling solution design for the better thermal dissipation

Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration

Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Specifications
Audio	RealtekÂ® ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Chipset	IntelÂ® Z590 Express Chipset
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-CÂ® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) 2 x Thunderboltâ„¢ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button 1 x noise detection header
Integrated CPU Graphics	Integrated Graphics Processor-IntelÂ® HD Graphics support: 1 x USB Type-CÂ® port, supporting USB Type-CÂ® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz. * Support for drawing tablets and 20V@3A of power delivery. Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.3.
LAN	IntelÂ® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit
Memory/Type/Bus/Max.	11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3/PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Slots	Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Processor Support	11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3 /PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Raid	Support for RAID 0, RAID 1, RAID 5, and RAID 10
RAM Type/Bus/Max.	11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3/PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Socket	1200
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. IntelÂ® Optaneâ„¢ Memory Ready
Warranty	3 Years
Weight
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. Noise detection
Operating System	Support for Windows 10 64-bit
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
USB	Chipset: 2 x USB Type-CÂ® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-CÂ® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

Specifications

Audio

RealtekÂ® ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Chipset

IntelÂ® Z590 Express Chipset

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-CÂ® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) 2 x Thunderboltâ„¢ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button 1 x noise detection header

Integrated CPU Graphics

Integrated Graphics Processor-IntelÂ® HD Graphics support: 1 x USB Type-CÂ® port, supporting USB Type-CÂ® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz. * Support for drawing tablets and 20V@3A of power delivery. *Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.

LAN

IntelÂ® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit

Memory/Type/Bus/Max.

11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3/PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

PCI Slots

Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)

Processor Support

11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3 /PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Raid

Support for RAID 0, RAID 1, RAID 5, and RAID 10

RAM Type/Bus/Max.

Socket

1200

Storage Interface

CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. IntelÂ® Optaneâ„¢ Memory Ready

Warranty

3 Years

Weight

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. Noise detection

Operating System

Support for Windows 10 64-bit

Unique Features

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install

USB

Chipset: 2 x USB Type-CÂ® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-CÂ® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
