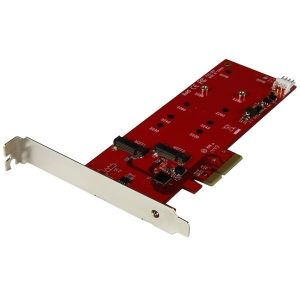

PEX2M2 | Startech 2x M.2 SATA SSD Controller Card - PCIe

Ports & interfaces
Internal	Yes
Port multiplier	No
Host interface	PCIe
Output interface	M.2
Peripheral (Molex) power connectors (4-pin)	1
Internal SATA ports quantity	2
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCI 2.0
Performance
Port multiplier	No
Plug and Play	Yes
Chipset	ASMedia - ASM1062
Native Command Queuing (NCQ)	Yes
Data transfer rate (max)	6 Gbit/s
Product colour	Red
Harmonized System (HS) code	84733020
Design
Internal	Yes
Product colour	Red
Certification	CE, FCC, TAA
Features
Plug and Play	Yes
Chipset	ASMedia - ASM1062
Native Command Queuing (NCQ)	Yes
Data transfer rate (max)	6 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	5 - 50  Â°C
Storage temperature (T-T)	-25 - 70  Â°C
Operating relative humidity (H-H)	20 - 80%
Technical details
Harmonized System (HS) code	84733020
Sustainability certificates	RoHS
Weight & dimensions
Width	20 mm
Depth	180 mm
Height	120 mm
Weight	62 g
Package width	218 mm
Package depth	160 mm
Package height	48 mm
Package weight	167 g
Packaging data
Mounting brackets included	Yes
Package width	218 mm
Package depth	160 mm
Package height	48 mm
Package weight	167 g
Quantity	1
Packaging content
Mounting brackets included	Yes
Quantity	1
Other features
Chipset	ASMedia - ASM1062

---

Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express

This M.2 SSD controller card lets you install two M.2 SATA solid-state drives (SSD) into your PC through PCI Express. You can mount virtually any M.2 drive directly to the card, giving you a convenient and discreet way to improve your computer system performance. Plus, the card is a vital computer add-on if you need to recover data from an existing M.2 drive, or for expanding your overall internal storage.

Leverage the speed and size of M.2 drives

This M.2 controller card lets you take full advantage of the performance and size benefits of NGFF (Next Generation Form Factor) SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in tighter areas within your computer case. By freeing up space within your computer, you’ll also have more room for additional hardware upgrades.

When you couple the card with an M.2 drive, you can give your computer’s performance a noticeable speed boost, enabling you to replace your platter drive with a faster M.2 SATA III (6Gbps) solid-state drive. By installing your operating system on the M.2 drive, you'll have faster access to the files you commonly use, and you can continue to use your higher-capacity platter HDD for bulk storage.

Rest assured, with simple and cost-effective data recovery

Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed but its M.2 drive is functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.

Wide compatibility

You can also rest assured that your M.2 SATA drives are compatible with the card. It supports the most common drive sizes, including 22110, 2280, 2260, 2242 and 2230.

The M.2 controller provides additional installation flexibility with a dual-profile design that fits standard or low-profile cases, so it’s the perfect solution for small form-factor or full-sized computers.

Get up and running quickly

This M.2 SSD controller card is easy to install, with native OS support and no additional drivers or software required.

The PEX2M2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Improve system performance, recover data, or create a redundant data backup by adding two M.2 solid-state drives (SSD) to your desktop PC
- Wide installation compatibility, with support for virtually all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230)
- Two M.2 B-Key onboard sockets that support SATA III transfer speeds up to 6Gbps
