All stock codes associated to this product
ST122HD4K, 2728409, 0065030858489
| Ports & interfaces |
|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| HDMI version | 1.4 |
| DC-in jack | Yes |
| Features |
|---|
| Housing material | Aluminium |
| LED indicators | Activity, Power |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| Supported video modes | 720p, 1080p, 2160p |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| Power |
|---|
| Input current | 0.35 A |
| Output current | 2 A |
| Output voltage | 5 V |
| AC input voltage | 100-240 V |
| Weight & dimensions |
|---|
| Weight | 176 g |
| Dimensions (WxDxH) | 60 x 100 x 14 mm |
| Package weight | 430 g |
| Package depth | 216 mm |
| Package width | 148 mm |
| Package height | 53 mm |
| Packaging data |
|---|
| Package weight | 430 g |
| Package depth | 216 mm |
| Package width | 148 mm |
| Package height | 53 mm |
| Packaging content |
|---|
| AC adapter included | Yes |
| Manual | Yes |
| Video |
|---|
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| Supported video modes | 720p, 1080p, 2160p |
| Colour |
|---|
| Product colour | Black |
| Certificates |
|---|
| Certification | CE, FCC, RoHS |
| Indication |
|---|
| LED indicators | Activity, Power |
| Technical details |
|---|
| Housing material | Aluminium |
| Supported audio channels | 7.1 |
| Package width | 148 mm |
| Package height | 53 mm |
| HDMI version | 1.4 |
| Audio support | Yes |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |

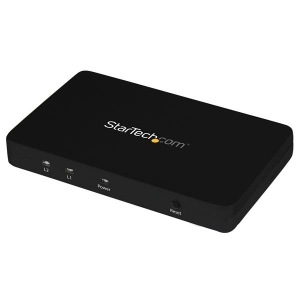

The ST122HD4K 2-port 4K HDMI splitter lets you share two HDMI displays or projectors with an HDMI-enabled audio / video source device, such as a computer, Blu-ray player or cable TV set-top box. With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST122HD4K ensures you'll be ready to take advantage of tomorrow's display technology. Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation. Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application. The ST122HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage - Take advantage of 4K (Ultra HD) video with compact HDMI 4K splitter enabling you to handle the latest devices and displays - Ensure your splitter stays where you put it with a solid aluminum hosing, unlike lighter plastic splitters that get dragged out of place by attached HDMI cables - Ensure an ideal video output with EDID emulation
